ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft [6258]

$500.85
$372.99
— You save $127.86
SKU:
97212
UPC:
693006010519
Condition:
Brand New
Availability:
In Stock
  • ARCO Marine ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft [6258] MyGreenOutdoors
  • ARCO Marine ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft [6258] MyGreenOutdoors
  • ARCO Marine ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft [6258] MyGreenOutdoors
  • ARCO Marine ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft [6258] MyGreenOutdoors
  • ARCO Marine ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft [6258] MyGreenOutdoors
30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

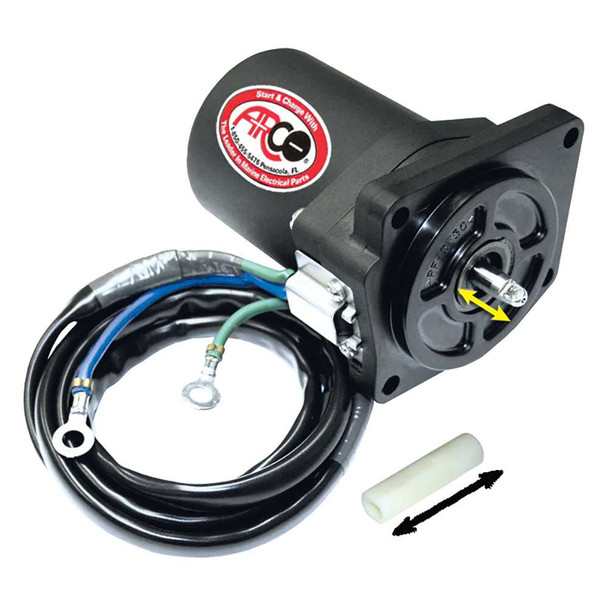

Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft

Replacement outboard tilt trim motor that will fit Yamaha 2005-UP 75 HP 4 Stroke, 2005-UP 90 HP 4 Stroke, 2-wire connection, 4-bolt mount, Includes O-ring & Coupler, Ring Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

  • Tilt trim motors are dynamically tested to ensure out-of-the-box performance
  • Motor shafts induction case hardened at bearing surfaces for superior wear resistance
  • Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

YAMAHA Tilt Trim Motor 6D8-43880-00
YAMAHA Tilt Trim Motor 6D8-43880-01
YAMAHA Tilt Trim Motor 6D8-43880-09

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
