BEP Marine

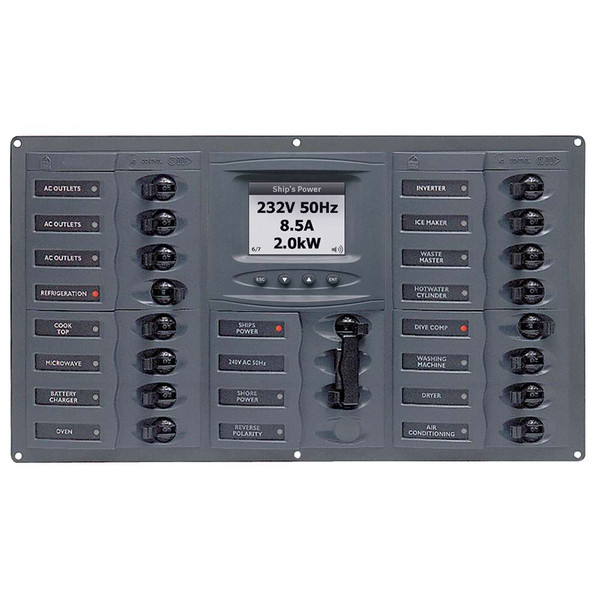

BEP AC Circuit Breaker Panel w/Digital Meters, 16SP 2DP AC120V ACSM Stainless Steel Horizontal [900-AC4-ACSM-110]

$2,032.55
$1,175.99
— You save $856.56
SKU:
59032
UPC:
843687004516
Condition:
Brand New
Availability:
Backordered - Call (800) 305-2726 to Order

Out of Stock

30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

AC Circuit Breaker Panel with Digital Meters, 16SP 2DP AC120V ACSM Stainless Steel Horizontal

Features:
  • Supplied with tranducer
  • Reverse polarity indicator
  • Double pole mains input CBs with side lockout
  • Digital meter shows volts, amps and frequency
  • LED wired to indicate live panel with mains breaker either on or off
  • AC source selector ensures no cross over between AC inputs (ship or shore power)
Specifications:
  • Total Positions: 16 Loads + 2 Inputs
  • Circuit Breakers: 5x 10A, 7x 15A, 2x 20A, 1x 25A, 1x 30A + 1x 30A, 1x 80A
  • Nominal Voltage: 110V AC
  • Maximum Amperage: 80A
  • Dimensions: 7.9" X 13.9" X 2.5"
  • Neg Bus: IS-6MM-2

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 16+2
  • UPC: 843687004516
