Blue Sea Systems

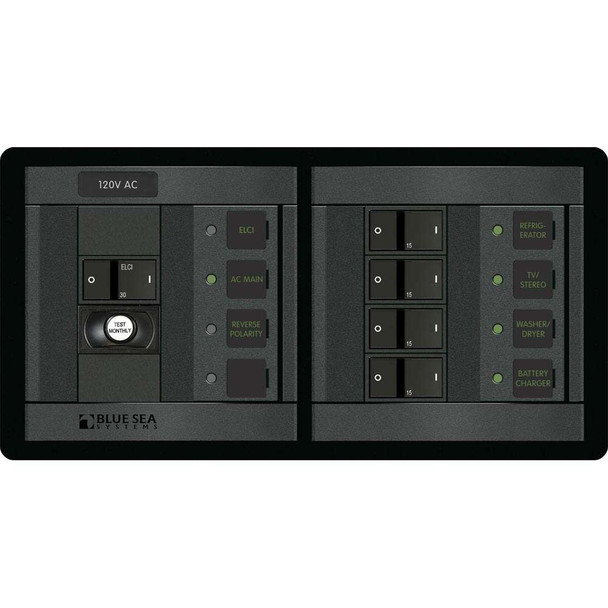

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal [1193]

$956.64
$593.99
— You save $362.65
SKU:
57243
UPC:
632085011932
MPN:
1193
Condition:
Brand New
Availability:
Backordered - Call (800) 305-2726 to Order

Out of Stock

30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

ELCI Main 30A Double Pole + 4 Positions Horizontal

Features:

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Four 15A AC Branch Flat Rocker Circuit Breaker
  • Red " Reverse Polarity" LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications:
  • Positions: 1
  • Nominal Voltage: 120V AC
  • Height: 4.75" (120.65mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.99" (101.35mm)
  • Weight: 1.00lb (0.45kg)


Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 5"H x 9"W x 13"L WT: 3.8 lbs
  • UPC: 632085011932

Quick Guide (pdf)
Owner's Manual (pdf)
