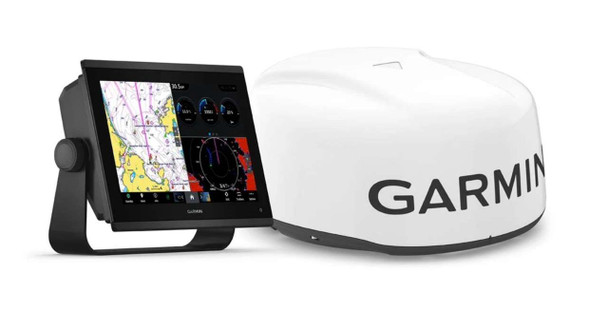

Garmin GPSMAP1223XSV HD3 Radar Pack

$4,599.99
SKU:
GAR0100236752
UPC:
753759326029
Condition:
Brand New
Availability:
In Stock
30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

Garmin GPSMAP1223XSV HD3 Radar Pack

Garmin GPSMAP® 1223xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap and GMR18HD3 radar Dome

Model: 010-02367-52
  • Easily integrate with more engines.
  • Connect to compatible third-party devices with OneHelm™ digital switching.
  • Easily build your marine system using the best of network connectivity.
  • Navigate any waters with preloaded mapping and coastal charts.
  • See below your boat with built-in sonar capabilities.
  • Manage your marine experience from nearly anywhere.

With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Specifications
General
PHYSICAL DIMENSIONS12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
DISPLAY SIZE10.3" x 6.4"; 12.1" diagonal
DISPLAY RESOLUTION1280 x 800 pixels
DISPLAY TYPEWXGA display
WEIGHT6.6 lbs. (3.0 kg)
WATER RATINGIPX7
POLARIZED SUPPORTYes
POWER CONSUMPTIONMax power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A
ANTENNAInternal or external over NMEA 2000
MOUNTING OPTIONSBail, flush or flat
RECEIVER10 Hz high-sensitivity
GARMIN MARINE NETWORK™ PORTS2
TRANSMIT POWER1 kW traditional; 1 kW CHIRP
Maps & Memory
PRELOADED MAPSworldwide basemap
ACCEPTS DATA CARDS2 microSD™ cards (back of unit)
WAYPOINTS5,000
TRACK LOG50,000 points; 50 saved tracks
ROUTES100
Outdoor Recreation
TIDE TABLESYes
Chartplotter Features
GARMIN RADAR COMPATIBLEYes
GARMIN SONAR COMPATIBLEYes (built-in)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOSYes
GSD™ BLACK BOX SONAR SUPPORTYes
GCV™ BLACK BOX SONAR SUPPORTYes
ACTIVECAPTAIN COMPATIBLEYes
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLEYes
WIRELESS REMOTE COMPATIBLEYes
SAILING FEATURESYes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLEYes
DUAL-BEAM (77/200 KHZ) SONAR CAPABLEYes
FREQUENCIES SUPPORTEDTraditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer)
CHIRP SONAR TECHNOLOGYYes (Built-in)
CLEARVüYes with CHIRP (built-in)
SIDEVüYes with CHIRP (built-in)
MAXIMUM DEPTH5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)Yes
WATER TEMPERATURE LOG AND GRAPHYes
SONAR RECORDINGYes
SONAR HISTORY REWINDYes
Connections
NMEA 2000® COMPATIBLEYes
TRANSDUCER PIN NUMBERS12-pin (orange)
NMEA 0183 INPUT PORTS1
NMEA 0183 OUTPUT PORTS1
VIDEO INPUT PORTS1 BNC
VIDEO OUTPUT PORTS1 HDMI
WIRELESS CONNECTIVITYYes
J1939 COMPATIBLEYes

What's in the Box:
  • GPSMAP 1223xsv chartplotter
  • microSD™ card preinstalled
  • Power cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
  • 8-pin transducer to 12-pin sounder adapter cable
  • GMR 18 HD3 radome
  • Mounting hardware kit
  • Power cable (15 m)
  • Network cable (15 m)
  • Installation instructions
