Garmin

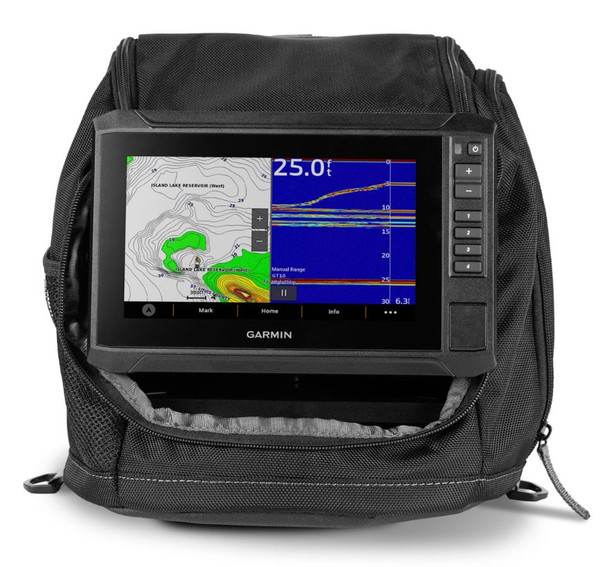

Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland

$899.99
SKU:
GAR0100268435
UPC:
753759322724
Condition:
Brand New
Availability:
In Stock
  • Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland
  • Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland
30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland

Model: 010-02684-35
  • BUILT WITH BRIGHT 7" TOUCHSCREEN DISPLAY AND KEYED ASSIST
  • INCLUDED TRANSDUCER SO YOU SEE WHAT’S BELOW
  • INCLUDES A BUILT-IN FLASHER
  • FEATURES GARMIN NAVIONICS+™ MAPS WITH 23,000+ LAKES
  • COMES WITH A RUGGED, PORTABLE CARRYING CASE

Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar, so you can transform your fishing experience.

The 7" ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).

This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.

Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

ECHOMAP UHD2 73sv also supports ClearVü™ and SideVü™ scanning sonars for nearly photographic images of what’s below the boat (transducer sold separately).

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications
General
TOUCHSCREEN Yes
INPUT Touchscreen with Keyed Assist
DISPLAY SIZE 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm)
DISPLAY RESOLUTION 800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels
DISPLAY TYPE WVGA, TN
WEIGHT 11.0 lbs (5.0 kg)
WATERPROOF IPX7
Maps & Memory
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Ice Fishing Details
BATTERY TYPE, SIZE BATTERY TYPE, SIZE SLA, 7Ah
BAG SIZE Small
INCLUDED TRANSDUCER GT10HN-IF
TRANSDUCER HOLDING FEATURE Foam float
Sensors
HAS BUILT-IN RECEIVER Yes
RECEIVER 10 Hz
NMEA 2000 COMPATIBLE Yes
GPS Yes
GLONASS Yes
GALILEO Yes
BEIDOU Yes
SUPPORTS WAAS Yes
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes
Sonar Features & Specifications
DISPLAYS SONAR Yes
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVU built-in 260/455/800/1000/1200 kHz
SIDEVU built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR Yes
LIVESCOPE Yes
Connections
NMEA 2000® PORTS Yes
GARMIN MARINE NETWORK PORTS 1
12-PIN TRANSDUCER PORTS 1
BLUETOOTH® PAIRING Yes
ANT+ (CONNECTIVITY) Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes
Input Voltage 9 to 18 Vdc
Dimensions 10.5" 9.5" 10.5" (26.7 22.9 26.7 cm)

What's in the Box:
  • ECHOMAP™ UHD2 73sv chartplotter
  • GT10HN-IF ice fishing transducer
  • Tilt/swivel mount
  • Portable bag
  • Base/handle
  • Foam float
  • Power cable
  • Rechargeable battery
  • Battery charger
  • Documentation
