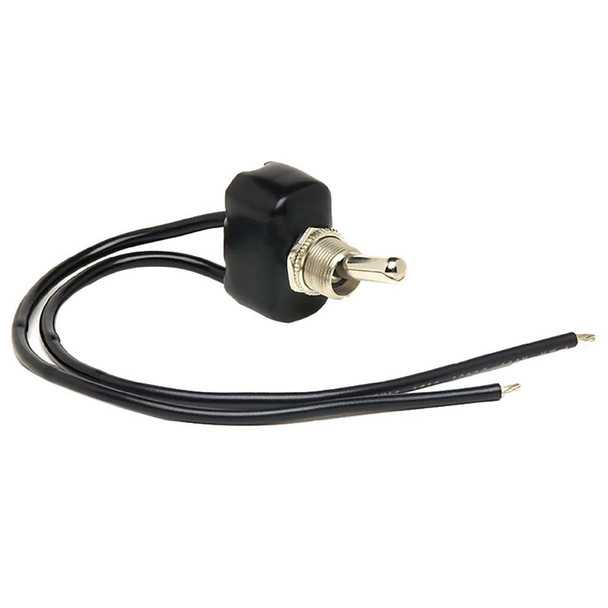

Cole Hersee Heavy-Duty Toggle Switch SPST On-Off 2-Wire [5582-10-BP]

$29.72
SKU:
88881
UPC:
632850632621
Condition:
Brand New
Availability:
In Stock
30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

Heavy-Duty Toggle Switch SPST On-Off 2-Wire

Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.

Specifications:

  • Mounting: Nickel Plated Brass Face Nut through 15/32 (11.90mm) Panel Hole *Part Number 5520: Black Finished Face Nut
  • Voltage Ratings: 10A at 36V DC/15A at 24V DC/25A at 12V DC
  • Current Rating (Continuous) in Amps: 10
  • Voltage Rating (Max): 36
  • Circuitry: SPST
  • Input Terminals: 2 Leads (203mm 16AWG Stripped) 1 Plug - 2 Leads (203mm 6AWG Stripped) 1 Plug
  • Housing: Weather-Resistant PVC-Coated Plasticized Housing
  • Actuator: Standard Toggle
  • Actuator Details: Nickel-Plated Brass - 17.4625
  • Panel Thickness: Up to 1/4 (6.35mm) thick
  • Contact Material: Silver
  • Recommended Torque: On - None - Off


Quick Guide (pdf)
