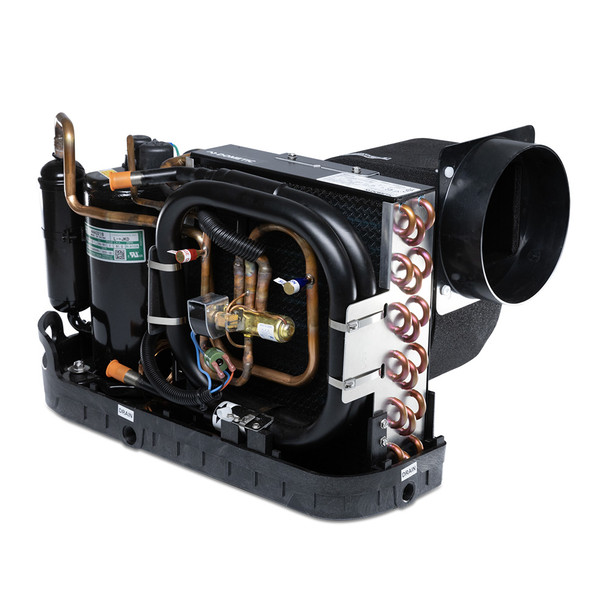

Dometic GT16 16,000 BTU Marine Air Conditioner w/Digital Control Display - 230V [9610007638]

GT16 16,000 BTU Marine Air Conditioner with Digital Control Display - 230V

GT combines proven engineering with value-oriented positioning. Every unit includes an integrated digital display for temperature control and system monitoring. Available in 6,000, 10,000, and 16,000 BTU/h capacities with reverse cycle heating, GT delivers reliable climate performance in a complete package.

Designed as a drop-in replacement for older A/C systems, GT features rotatable blower positioning, R454B low GWP refrigerant, and compact dimensions for flexible installation. Multiple voltage configurations (115V/230V, 50/60Hz) provide compatibility across applications.

Features:

• R454B low GWP refrigerant
• Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
• Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
• Channels in drain pan guide water directly to multiple drain locations, regardless of boat’s heeling angle
• Rotate the blower up to 270° to find the perfect ducting angle using a single adjustment screw
• Critical components are easily accessible for simplified servicing
• Added VMD display

Quiet Operation

Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.

Rapid Drainage

Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.

Compact Size

GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.

Technical Specifications:

• Capacity (BTU/h) - 16,000
• Voltage (VAC) - 230
• Cycle (Hz) /Phase (Ph) - 50-60/1
• Full Load Amps (FLA) Cool (A) - 5.5
• Full Load Amps (FLA) Heat (A) - 7.0
• Full Load Amps (FLA) Blower (A) - 0.8
• Locked Rotor Amps (LRA) - 27
• Max. Circuit Breaker (A) - 20
• Min Circuit Ampacity (A) - 13
• CO2 Equivalent - 0.15
• Refrigerant Type - R454B
• Max Height (in/cm) - 13.3/33.8
• Max Width - 21.5/54.6
• Max Depth - 13.3/33.8
• Min. Duct Size Dia. (in/cm) - 7/17.8
• Min. Supply Air Grille (sq in/cm) - 80/516

Specifications:

• Capacity (BTU): 16,000 BTU
• Voltage - Input Range (Volts): 230v
