Garmin GPSMAP 1223 Non-Sonar w/Worldwide Basemap

Garmin GPSMAP x3 series

GPSMAP 1223 12-inch Chartplotter with Worldwide Basemap

The Garmin GPSMAP 1223 is a premium 12-inch touchscreen chartplotter built for a connected helm. It combines WXGA touchscreen, Worldwide Basemap, network-ready sonar display support without built-in xsv sonar, and Garmin Marine Network expansion for charts, radar, engine data, cameras, autopilot, and connected accessories.

Why this GPSMAP 1223

Best for a 12-inch touchscreen Garmin helm where sonar is handled through a separate module, display, or network setup. Use it as the main display for a Garmin marine system with charts, radar overlay, sonar views, engine data, cameras, digital switching, autopilot, and connected accessories.

Network sonar and expansion

• Non-sonar configuration: this model is the chartplotter version and does not include built-in xsv sonar.
• Sonar display capable: can display sonar when connected to compatible Garmin sonar equipment or live sonar systems.
• Live sonar ready: supports compatible Panoptix and LiveScope systems when the required sonar equipment and transducer are added separately.
• Touchscreen control: keeps charting, sonar views, radar, engine data, and connected controls available from one Garmin helm.

Mapping, navigation, and helm control

• Mapping package: Worldwide Basemap is the chart package shown on this listing.
• Optional chart upgrades: compatible Garmin chart upgrades can add premium chart detail where available.
• OneHelm integration: control compatible third-party systems such as digital switching from the chartplotter screen.
• ActiveCaptain app support: built-in Wi-Fi pairs with the mobile app for chart access, smart notifications, software updates, Helm app features, Quickdraw Community data, and more.

Connected Garmin marine system

GPSMAP x3 displays can be part of a larger Garmin helm with compatible radar, sonar, autopilot, Fusion audio, VHF, AIS, cameras, digital switching, Power-Pole systems, Force trolling motors, engine data, and additional Garmin displays. Integrated ANT connectivity supports compatible Garmin marine accessories and wireless controls.

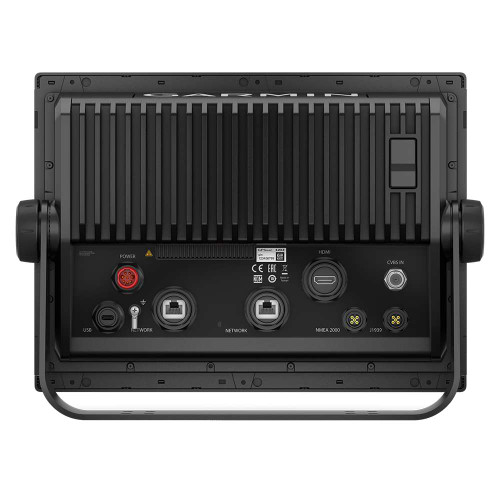

Connections

Spec highlights

Choosing the right Garmin GPSMAP touchscreen model

Use this section after reviewing the GPSMAP 1223. It compares similar touchscreen GPSMAP x3 models so the choice stays focused.

GPSMAP 1223 (Current Model)

12-inch touchscreen · Worldwide Basemap · Non-sonar chartplotter

Best for a 12-inch touchscreen Garmin helm where sonar is handled through a separate module, display, or network setup.

Current Model

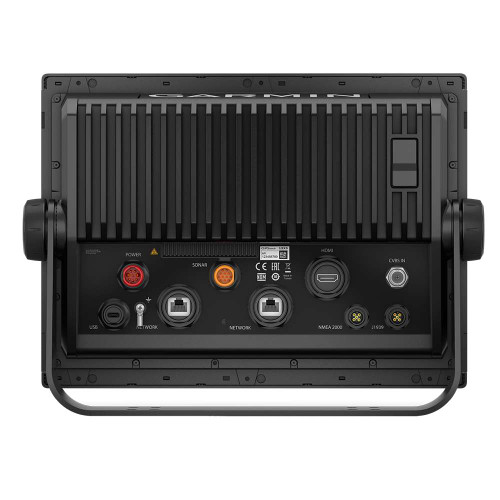

GPSMAP 1223xsv

12-inch touchscreen · Worldwide Basemap · Built-in xsv sonar

Best for a 12-inch touchscreen Garmin helm that needs built-in xsv sonar with Worldwide Basemap.

View GPSMAP 1223xsv

Frequently asked questions

Auto Guidance and connected features are for planning or system control only and do not replace safe navigation. Some features require compatible accessories, subscriptions, apps, gateways, or separately purchased equipment.

MPN: 010-02367-00 · UPC/GTIN: 753759250614
