Garmin GMR Fantom 254 Radar with 4' Open Array Antenna

$11,199.99
SKU:
86001
UPC:
753759243951
MPN:
K10-00012-21
Condition:
Brand New
Availability:
In Stock
Shipping:
Free 2-Day Shipping on Orders $500+

Questions? Call us at (800) 305-2726 for help.

30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available
Frequently bought together:

Description

Garmin marine radar

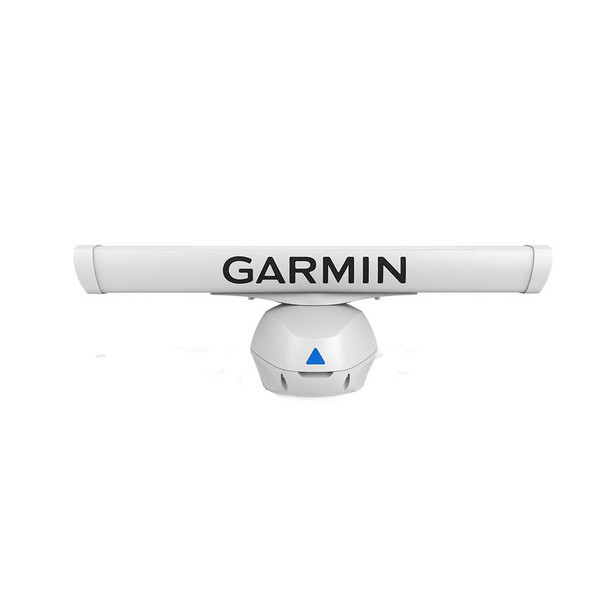

Garmin GMR Fantom 254 Radar with 4' Open Array Antenna

GMR Fantom™ 254 is the most powerful 4’ consumer solid-state radar.

Garmin Authorized Dealer
PackageOpen array + pedestal
Array4'
Power250W
Max Range96 nautical miles
SeriesFantom

Is this the right Garmin radar?

Best for larger boats and offshore Garmin systems where long-range awareness, target separation, and open-array performance matter. Confirm chartplotter compatibility, mount location, cabling, and heading-sensor needs before ordering.

Feature highlights

  • We’ve got the power. 250 watts of it to be exact.
  • Know the long and short of it with a detection range of 20’ to 96 nautical miles.
  • MotionScope™ highlights everything that moves so there are no surprises.
  • The more the merrier with MARPA. Keep track of up to 30 moving targets.
  • Clear the clutter with scan-to-scan averaging.

Feature details

  • MotionScope™ Technology: Detect and highlight moving targets in different colors to help avoid collisions, find flocks of birds and track weather from 20’ to 96 nautical miles.
  • Automatic Acquisition: New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope™.
  • Clear The Way: Scan-to-scan averaging aids in reduction of sea clutter and interference, so you have a clear view of what’s out there.
  • Auto Bird Gain: Where there are birds on the water’s surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the water’s surface.
  • Pulse Compression: This feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.
  • Echo Trails: True Echo Trails feature displays a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat.
  • Radar Overlay: Overlay radar on your chart screen as single display or split screen with independent range settings.
  • Dynamic Sea Filter: Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.
  • Guard Zone: Set the safety zone and receive an alarm when an object enters the zone.

What's in the box

  • GMR Fantom 254 antenna and pedestal
  • Mounting hardware kit and template
  • Right angle power cable (15 meters)
  • Right-angle BlueNet™ network cable (15 meters)
  • BlueNet™ Network to RJ45 Adapter Cable
  • Voltage converter
  • Documentation

Before you buy

Radar performance and compatibility depend on your Garmin display, network, mount, cable route, and optional heading-sensor setup. Contact MyGreenOutdoors before checkout if you want help confirming fitment.

Specifications

Range - Max (Miles)96nm
Power - Output250w
Array Size (Inches)48"
Box Dimensions8"H x 10"W x 55"L WT: 73.75 lbs
MPNK10-00012-21
UPC/GTIN753759243951

Compare similar Garmin open-array radars

A short, focused comparison of nearby Garmin radar options.

Common questions

Is this a complete radar?
Yes, this listing includes the open-array radar and pedestal.

Will it work with every Garmin display?
No. Confirm compatibility with your Garmin chartplotter or ask us before ordering.

Do I need a heading sensor?
Some features, including the best radar overlay and MARPA target tracking, may require appropriate sensors sold separately.

MPN: K10-00012-21 · UPC/GTIN: 753759243951
