Simrad

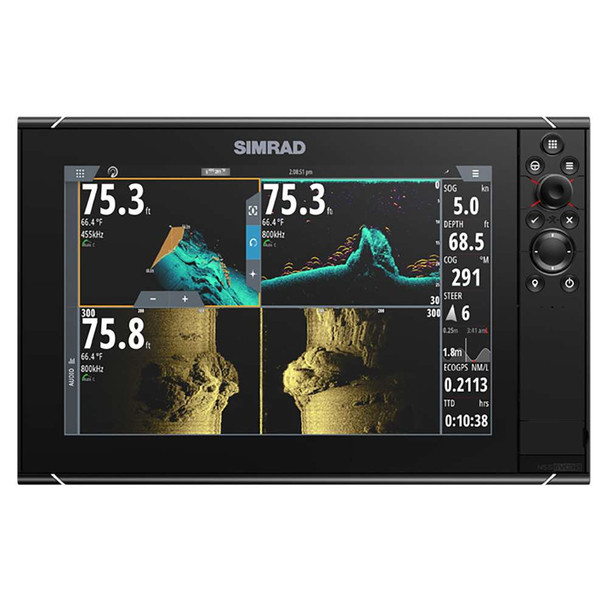

Simrad NSS12 evo3S Combo MFD - No HDMI

$3,699.00
SKU:
94114
UPC:
9420064130177
MPN:
000-15403-002
Condition:
Brand New
Availability:
In Stock
Shipping:
Free 2-Day Shipping on Orders $500+

Questions? Call us at (800) 305-2726 for help.

30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

Simrad NSS12 evo3S Combo MFD - No HDMI

The Simrad NSS12 evo3S Combo MFD - No HDMI is a premium Simrad NSS-family chartplotter/fishfinder solution for boaters who want hybrid touchscreen and keypad control, strong sonar capability, radar integration, and a connected helm experience.

Boaters who want the larger 12-inch NSS evo3S screen without bundling radar in the same SKU. This no-HDMI version is best when your install does not require HDMI video output from the display.

Key Features

  • Hybrid helm control: Touchscreen and keypad-style operation help keep the display usable in rough water, wet conditions, or fast menu changes.
  • Premium NSS performance: NSS evo3S models use a faster-generation processor platform for smoother page transitions, chart redraws, and split-screen use.
  • Chartplotter/fishfinder capability: Built for navigation, sonar, waypoint management, radar viewing, and connected Simrad system control.
  • Radar-ready integration: Compatible Simrad HALO radar can be added, and radar bundle SKUs include HALO20+ in the package.
  • Networked helm support: Designed for NMEA 2000, Ethernet-based Simrad accessories, autopilot control, AIS, instruments, and compatible sonar expansion.

Best Fit

Boaters who want the larger 12-inch NSS evo3S screen without bundling radar in the same SKU.

This is not a radar bundle, which keeps the package flexible if you already own radar or want to choose radar separately.

Spec Highlights

  • Brand: Simrad
  • Product Family: NSS / NSS evo3S
  • Screen Size: 12-inch
  • Package: Display/MFD package; no HDMI video output
  • MPN: 000-15403-002
  • UPC/GTIN: 9420064130177

Choosing the Right Simrad NSS evo3S Model

Choose by screen size first, then decide whether a radar bundle makes sense. Radar bundles are best when you want the display and HALO20+ radar together, while display-only packages are better when radar, sonar, or networking will be selected separately.

Radar Bundles

Simrad NSS9 evo3S HALO20+ Radar Bundle

NSS9 evo3S Radar Bundle

9-inch radar bundle

Best for: Boaters who want a compact premium NSS evo3S display with HALO20+ radar included in the package.

Why choose it: Best value when radar is part of the install and a 9-inch screen fits the helm.

MPN 000-15554-001

View model
Simrad NSS12 evo3S HALO20+ Radar Bundle - No HDMI

NSS12 evo3S Radar Bundle

12-inch radar bundle

Best for: Offshore and larger-console installs that need a bigger NSS screen plus HALO20+ radar in one package.

Why choose it: Step up from the 9-inch radar bundle when split-screen chart, sonar, and radar viewing matters.

MPN 000-15555-002

View model

Chartplotter / Fishfinder Displays

Simrad NSS7 evo3 Chartplotter Fishfinder with Insight Charts

NSS7 evo3

7-inch compact

Best for: Small helms that need a compact NSS-style chartplotter/fishfinder with physical controls.

Why choose it: Lowest-cost NSS-family option in this comparison, best when space is tight.

MPN 000-13233-001

View model

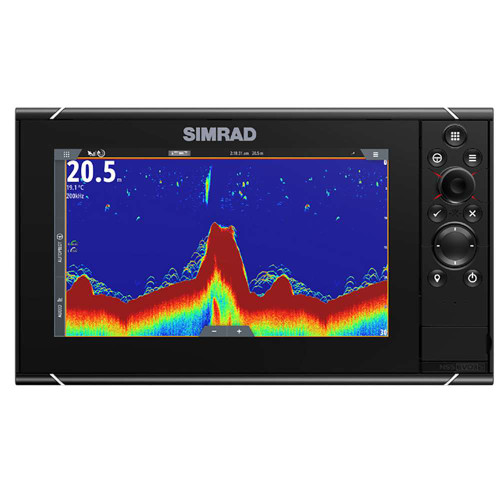

Simrad NSS9 evo3S Chartplotter Fishfinder

NSS9 evo3S

9-inch display

Best for: Boaters who want a premium 9-inch hybrid-control Simrad MFD without buying a radar bundle.

Why choose it: Strong fit for compact helm upgrades where sonar, charts, radar expansion, and keypad control matter.

MPN 000-15402-001

View model
Simrad NSS12 evo3S Combo MFD - No HDMI

NSS12 evo3S

12-inch display

You are viewing this model.

Best for: Boaters who want the larger 12-inch NSS evo3S screen without bundling radar in the same SKU.

Why choose it: Better split-screen room than the 9-inch display while keeping the install flexible.

MPN 000-15403-002

View model

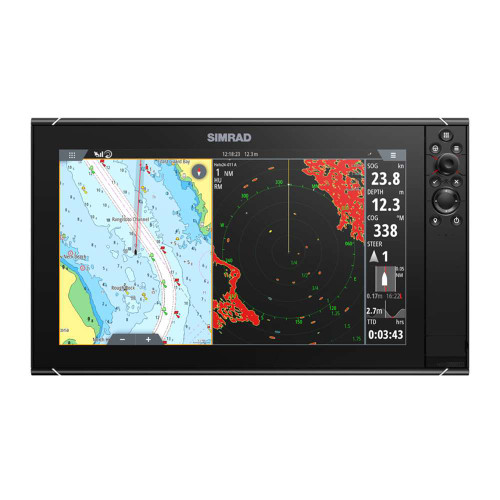

Simrad NSS16 evo3S Chartplotter Fishfinder

NSS16 evo3S

16-inch display

Best for: Large helms that need maximum NSS evo3S screen area for charts, sonar, radar, and system control.

Why choose it: Largest NSS evo3S display here, best for serious split-screen use before stepping into NSO glass-helm systems.

MPN 000-15404-001

View model

NSS evo3S vs NSS4: Which Should You Choose?

Choose NSS evo3S when you want a proven Simrad hybrid-control MFD, strong inventory availability, and a package that may include HALO20+ radar. Choose NSS4 when you want Simrad's newer NSS platform, a more modern glass-to-edge design, and the latest NSS4 model family comparison.

If you are building a new premium helm from scratch, NSS4 is usually the forward-looking choice. If this product matches your screen size, radar bundle, or replacement needs, NSS evo3S can still be the right fit.

Frequently Asked Questions

Does this NSS evo3S product include radar?

No. This listing is for the display package shown. Add compatible Simrad radar separately if radar is part of your install.

Should I choose a 9-inch, 12-inch, or 16-inch NSS display?

Choose 9-inch for compact helms, 12-inch for better split-screen viewing, and 16-inch when you want the largest NSS evo3S screen for chart, sonar, radar, and system pages.

Is NSS evo3S still worth buying now that NSS4 exists?

Yes, when the price, bundle, inventory, or replacement fit makes sense. NSS4 is the newer family, but NSS evo3S remains useful for buyers who want a proven hybrid-control Simrad display or a specific radar bundle.

Does this include a transducer?

Confirm the included components on the listing before ordering. Many NSS display packages do not include a transducer, which allows you to select the sonar setup that matches your boat.

What is the manufacturer part number?

The manufacturer part number is 000-15403-002.

Original Product Details & Specifications

Simrad NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder - No HDMI Video Outport

Simrad NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder - No HDMI Video Outport is a Simrad fishfinder built to give boaters clear sonar detail and dedicated control for coastal or offshore fishing.

Key Features

  • Dark-themed wallpaper for less light pollution from a dash of multiple screens.
  • The Audio side bar can now expand into a full page view.
  • The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
  • The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page
  • Display Unit
  • Bezel Trim
  • Documentation pack

Best For

  • Boats using or expanding an NMEA 2000 marine electronics network
  • Fishing setups where clear sonar detail and dependable display control matter
  • Navigation setups that need radar awareness at the helm
  • Autopilot installations, repairs, or steering-system upgrades

Spec Highlights

  • Screen Size: 12"
  • Box Dimensions: 9"H x 14"W x 18"L WT: 12 lbs
  • UPC: 9420064130177

Product Details

NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder - No HDMI Video Out Port

Improved Charting experience with the iMX8 processor

With a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.

In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.

Enhanced Sonar with superior on-water performance

1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.

SolarMAX™ IPS display for high-definition views

Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.

These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.

UI improvements

  • Dark-themed wallpaper for less light pollution from a dash of multiple screens.
  • The Audio side bar can now expand into a full page view.
  • The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
  • The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page

Wireless connectivity for smartphones and tablets

Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.

The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.

Radar Options

HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.

FLIR IP Camera Support

Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S™.

WM-4 Receiver

Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.

Fast & Simple Networking & Connectivity

Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more.

Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.

What's In The Box?

  • Display Unit
  • Bezel Trim
  • Documentation pack
  • Power cable kit
  • U-bracket kit
  • Panel mounting kit

Connections:

  • Ethernet - 2x Ethernet network
  • Power - power, power control, and external alarm
  • Video- composite video and NMEA0183
  • NMEA 2000 - NMEA 2000 data
  • Sonar CH1
  • Sonar CH2

Box & Package Details:

  • Screen Size: 12"
  • Box Dimensions: 9"H x 14"W x 18"L WT: 12 lbs
  • UPC: 9420064130177
