Simrad

Simrad NSS4-10 10" MFD - No Sonar

$2,599.00
SKU:
107356
UPC:
9420064135417
MPN:
000-16275-001
Condition:
Brand New
Availability:
In Stock
Shipping:
Free 2-Day Shipping on Orders $500+

Questions? Call us at (800) 305-2726 for help.

30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available
Frequently bought together:

Description

Simrad NSS4-10 10" MFD - No Sonar

The Simrad NSS4-10 10" MFD - No Sonar is a premium 10-inch Simrad NSS4 multifunction display built for boaters who want fast navigation, clear visibility, and strong system integration at the helm. It combines the NSS4 interface, hybrid touch/rotary/keypad control, and a fast 8-core processor in a clean glass-to-edge display design.

Choose this model if you want the 10-inch NSS4 display but do not need built-in sonar in the unit.

Key Features

  • Hybrid controls: Touchscreen, rotary dial, and keypad controls give you flexible operation in calm water, rough water, or wet conditions.
  • Fast NSS4 performance: The Qualcomm 8-core processor supports quick chart redraws, smooth page transitions, and responsive app switching.
  • Premium display design: The glass-to-edge NSS4 screen gives the helm a cleaner, modern look while improving dashboard integration.
  • Charting and navigation: Charting support; verify chart package for your setup.
  • System integration: Built for connected Simrad systems with radar, autopilot, NMEA 2000, Ethernet networking, compatible sonar modules, cameras, and marine accessories.

Best For

  • Networked helm systems where sonar is handled by a separate module or another display.
  • Boaters who want a premium 10-inch NSS4 MFD for charting, radar, autopilot, and system control without built-in sonar.
  • Installations where the display will be part of a larger Simrad electronics network.

Compatibility & Integration

The NSS4 platform is designed for modern Simrad helm networks. Use this display as the center of a connected system for navigation, radar, autopilot control, instrument data, sonar expansion, cameras, and compatible accessories.

  • Sonar: No built-in sonar.
  • Charts: Charting support; verify chart package for your setup.
  • Networking: Supports connected marine electronics workflows with NMEA 2000 and Ethernet-based integration.
  • Radar and autopilot: Designed to integrate with compatible Simrad HALO radar and Simrad autopilot systems.
  • Sonar modules: Compatible network sonar modules such as S3100/S3100H and S5100 can expand sonar capability when your installation calls for module-based sonar.
  • Other onboard electronics: Supports integration with compatible Simrad displays, NSX-family displays, VHF radios, instruments, compasses, AIS devices, IP cameras, and compatible trolling motor systems when properly networked.
  • Installation note: Confirm transducer, chart card, radar, autopilot, cable, and mounting requirements for your exact boat setup before installation.

Spec Highlights

  • Brand: Simrad
  • Product Family: NSS4
  • Display Size: 10"
  • Package: MFD - No Sonar
  • MPN: 000-16275-001
  • UPC/GTIN: 9420064135417

Product Details

NSS4-10 10" MFD - No Sonar

NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.

Main Menu/Pages Button

Switch instantly to full-screen mode, giving a clear overview of all key data without clutter.

App Menu

Provides quick access to the settings menu to make tweaks on the fly.

Rotary Dial

Useful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.

X Button

Return to the previous screen or cancel the current action.

Waypoint Button

A super quick and easy way to mark waypoints accurately on your chart.

Power Button: Power your device on and off.

Configurable Custom Keys

These fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key)

Dual SD Card Slot

Convenient front-facing slots for easy access to chart cards and memory cards.

Unmatched Speed

Experience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.

Instant Response

Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.

Ultra-fast Charting

NSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.

Advanced Angling Tech for the Ultimate Sportfishing System

Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.

Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

Built for Complete Customization

Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.

Features:

  • A trio of hybrid controls: touch, rotary, and keypad
  • Premium glass-to-edge design
  • Lightning fast Qualcomm® 8-core processor
  • Redesigned operating system
  • Support for various 1kW CHIRP echo sounders
  • Support for Active Imaging™ & Active Imaging™ HD
  • Support for C-MAP® X-gen charts and others
  • Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
  • Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more...
  • Support for Mercury®, CZone®, SiriusXM®, and more...
  • 2-year limited warranty

Autopilot

  • Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
  • Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Cartography

  • Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
  • Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StrikeLines (check with provider for available content)

Connectivity

  • Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
  • Ethernet: 1 port (X-Coded M12 GbE); 1 port (yellow, 5-pin)
  • NMEA 0183: No
  • NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
  • PC Connectivity: No
  • Video: Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
  • WiFi: Wi-Fi 5

Display

  • Backlight Color: White
  • Resolution: 1280 x 800
  • Screen Brightness: >1200 nits
  • Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
  • Viewing Angles: 80° top/bottom, 80° left/right
  • Waterproof rating: IPX6 and IPX7

Electrical

  • Power Consumption, max.: 28 W
  • Recommended Fuse Rating: 5 A
  • Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
  • Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

GPS

  • Correction: 10 Hz high-speed update (internal)
  • GPS Receiver Channels: 32 Channels
  • Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
  • Update rate: 10Hz

MFD

  • AIS: Receive AIS data over NMEA 2000
  • Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
  • Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required
  • Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StrikeLines (check with provider for available content)
  • Digital Switching: CZone / DDS
  • External Storage: 2x (microSD®, SDHC®)
  • GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS)
  • Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
  • Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports
  • Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
  • Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)

Physical

  • Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″)
  • Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied)
  • Weight: 1.8 kg (3.97 lb)

Other

  • Warranty Period: 2 Years
  • Interface: Hybrid multi-touch screen, buttons, and rotary knob

Box & Package Details:

  • Cartography Support: C-MAP Discover X, C-MAP Reveal X, CMOR, and StrikeLines compatible; confirm chart card requirements for your setup
  • Internal/External Antenna: Internal
  • Screen Size: 10"
  • Touchscreen: Yes
  • Box Dimensions: 7"H x 14"W x 21"L WT: 10.4 lbs
  • UPC: 9420064135417

Quick Guide (pdf)
Owner's Manual (pdf)

Choosing the Right Simrad NSS4 Model

Use this NSS4 lineup guide after reviewing the product details above to choose the best screen size and sonar configuration for your helm. Combo models include built-in sonar support, while No Sonar models are best for systems that handle sonar separately.

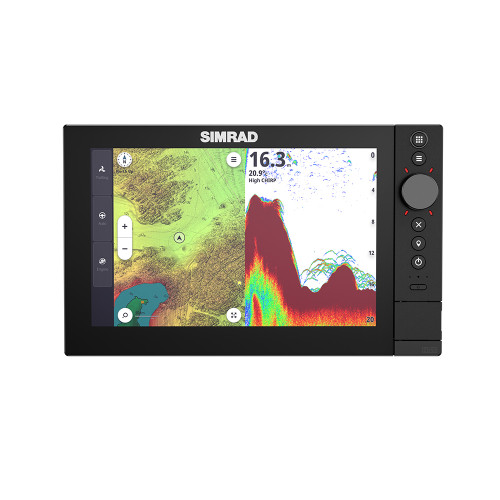

Simrad NSS4-10 10" Combo with U.S. C-MAP

NSS4-10 10" Combo with U.S. C-MAP

10-inch combo

Best for: Compact helms that need charting and built-in sonar support.

Why choose it: Includes U.S. C-MAP and built-in dual-channel 1kW CHIRP sonar support.

View model
Simrad NSS4-10 10" MFD - No Sonar

NSS4-10 10" MFD - No Sonar

10-inch no sonar

You are viewing this model.

Best for: Compact networked helms using separate sonar or no sonar.

Why choose it: Same NSS4 control experience without built-in sonar in the display.

View model
Simrad NSS4-12 12" Combo with U.S. C-MAP

NSS4-12 12" Combo with U.S. C-MAP

12-inch combo

Best for: Larger helms that need more screen space plus built-in sonar support.

Why choose it: A larger NSS4 combo package with U.S. C-MAP and sonar capability.

View model
Simrad NSS4-12 12" MFD - No Sonar

NSS4-12 12" MFD - No Sonar

12-inch no sonar

Best for: Larger networked systems where sonar is handled separately.

Why choose it: More screen area for chart, radar, autopilot, and system views without built-in sonar.

View model

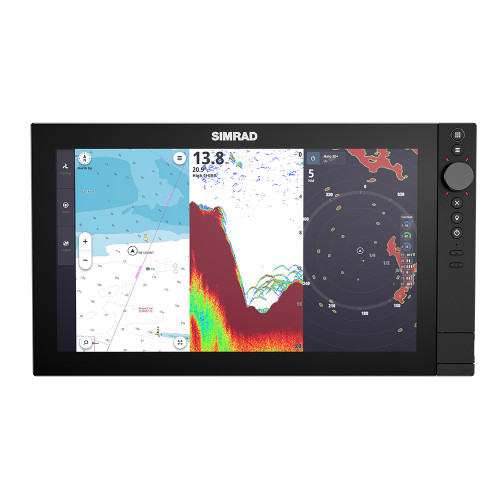

Simrad NSS 4-16 16" Combo with U.S. C-MAP

NSS 4-16 16" Combo with U.S. C-MAP

16-inch combo

Best for: Large offshore helms that need maximum NSS4 screen space plus built-in sonar support.

Why choose it: Largest NSS4 combo model in this set with U.S. C-MAP and built-in dual-channel 1kW CHIRP sonar support.

View model

Frequently Asked Questions

Is the Simrad NSS4-10 MFD - No Sonar right for me?

Choose the NSS4-10 MFD - No Sonar if you want a compact 10-inch NSS4 display for a networked helm and plan to run sonar through a separate module or another source. Choose the NSS4-10 Combo instead if you want built-in sonar ports on the display.

Does this NSS4 model include sonar?

No. This is the no-sonar NSS4 model, so it is best for systems that use separate network sonar modules, another sonar source, or do not need built-in sonar.

Which transducers are compatible with NSS4?

NSS4 supports a wide range of sonar setups, but compatibility depends on whether you are using a combo model with built-in sonar, a no-sonar MFD, or an external sonar module. Combo models support compatible xSonic, CHIRP, Active Imaging, and Active Imaging HD-style sonar setups when the correct transducer, connector, and installation requirements are used. For higher-power or more advanced sonar installations, network sonar modules such as S3100/S3100H and S5100 can be used with compatible transducers.

What Simrad marine electronics are compatible with NSS4?

NSS4 is designed to work as part of a connected Simrad helm system. Depending on the installation, it can integrate with compatible HALO dome and open-array radar, Simrad autopilot systems, other NSS4 and NSX-family displays, S3100/S3100H and S5100 sonar modules, Simrad RECON trolling motors, VHF radios, instruments, compasses, AIS devices, IP cameras, and compatible transducers.

Does this NSS4 model include charts?

This no-sonar version is designed as an MFD/navigation display. Use the product details and your charting setup to confirm the exact chart package needed for your installation.

What is the manufacturer part number?

The manufacturer part number is 000-16275-001.
