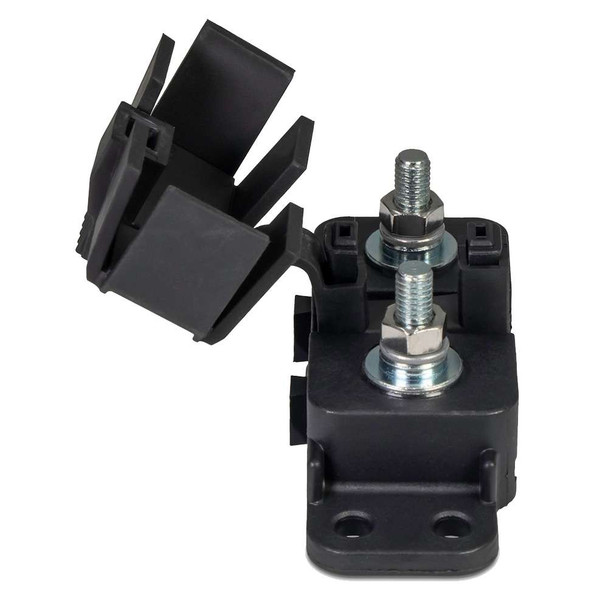

Cole Hersee MIDI Flex Series - 32V Bolt Down Fuse Holder f/Fuses Up To 200 Amps [04981038-BP]

$17.99
SKU:
97874
UPC:
079458279122
Condition:
Brand New
Availability:
In Stock
  • Cole Hersee MIDI Flex Series - 32V Bolt Down Fuse Holder f\/Fuses Up To 200 Amps [04981038-BP]
  • Cole Hersee MIDI Flex Series - 32V Bolt Down Fuse Holder f\/Fuses Up To 200 Amps [04981038-BP]
30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

MIDI Flex Series - 32V Bolt Down Fuse Holder for Fuses Up To 200 Amps

Thanks to its flexible cover, the MIDI Flex Series 32V Bolt-Down Fuse Holder makes it simple to install up to a 200A MIDI fuse. Its exterior features 6 positions for cable entry and accommodates large wire sizes and ring terminal stack-up. This bolt-down fuse holder has a dovetail side feature that lets you connect multiple MIDI Flex Series fuse holders. Busbars for multi-fuse applications are available (sold separately), so you can create a fused automotive power distribution block. MIDI Flex Series fuse holders can also be combined with MEGA Flex Series fuse holders (sold separately) for a high and low-amperage solution.

Features:

  • Carded blister packaging for simple retail display
  • Compatible with MIDI bolt-down fuses up to 200A (sold separately)
  • The flexible cover allows cable entry at 6 different locations, simplifying installation and accommodating large wire sizes and ring terminal stack up
  • The dovetail feature lets you connect multiple Flex Series fuse holders together to create a fused power distribution block
  • Slots molded into the base enable secure tie-wrap mounting
  • Zinc-plated steel M5 studs and hex nuts
  • Bolt-down fuse holder base features M4 mounting holes
  • UL 94 V-0 flammability rating

Applications:

  • Battery and alternator Connections

*Fuses not included

Specifications:

  • Amperage: 200
  • Fuse Type: MIDI/AMI
  • Type: Fuse Holders
  • Box Dimensions: 2"H x 3"W x 6"L WT: 0.2 lbs
  • UPC: 079458279122

Quick Guide (pdf)
