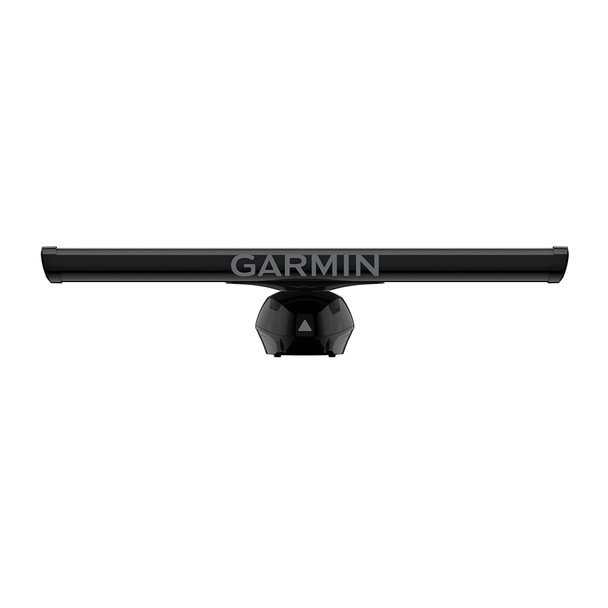

Garmin GMR Fantom 126 with 6' Open Array Radar - Black

Garmin marine radar

Garmin GMR Fantom 126 with 6' Open Array Radar - Black

This open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection — even in fog or rain.

Feature highlights

• Know what’s coming. MotionScope™ technology shows targets in color as they move closer or away
• GMR Fantom brings the power (120 watts of it)
• Get high resolution without wasting energy, thanks to pulse compression
• Add even more detail to maps with radar overlay — even in a split-screen view

Feature details

• High-Powered Radar: This 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.
• High-Resolution Radar: The 1.25-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.
• Motionscope Technology: MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.
• Intuitive Operation: This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
• Target Size: Adjust the size of objects on the radar image.
• Auto Bird Gain: Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
• Echo Trails: A historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.
• Dual Range: A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long ranges.
• Dual-Radar Support: Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
• Dynamic Auto Gain: Gain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.
• Dynamic Sea Filter: Gain automatically adjusts sea clutter for calm, medium, and rough sea conditions.
• Radar Overlay: Overlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.

Specifications

Compare similar Garmin open-array radars

A short, focused comparison of nearby Garmin radar options.

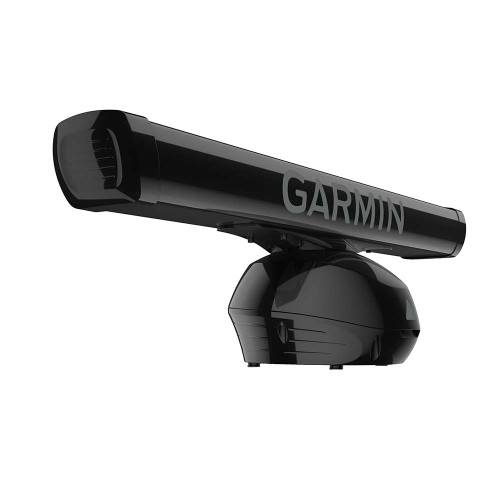

Garmin GMR Fantom 126 with 6' Open Array Radar - BlackCurrent 6' · 120W · 96 nautical miles · Black · K10-00012-33 Current Option Garmin GMR Fantom 126 with 6' Open Array Radar 6' · 120W · 96 nautical miles · K10-00012-20 View Option Garmin GMR Fantom 124 with 4' Open Array Radar - Black 4' · 120W · 96 nautical miles · Black · K10-00012-32 View Option Garmin GMR Fantom 56 with 6' Open Array Radar - Black 6' · 50W · 72 nautical miles · Black · K10-00012-31 View Option

Common questions

MPN: K10-00012-33 · UPC/GTIN: 753759331443
