NavPod GP1040-13 SystemPod Pre-Cut f/Simrad NSS9 evo2 or B&G Zeus 9 & 1 Instrument f/9.5" Wide Guard [GP1040-13]

GP1040-13 SystemPod Pre-Cut for Simrad NSS9 evo2 or B&G Zeus² 9 & 1 Instrument for 9.5" Wide Guard

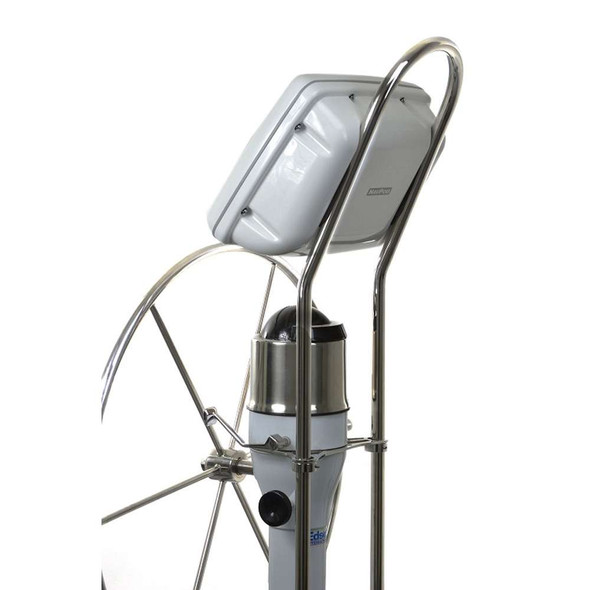

NavPod GP1040 Series for 9.5" Guard SystemPods for Sail are for mounting multiple pieces of electronics in one NavPod. This is a good way to reduce the height of a system. In addition to mounting a radar or chartplotter, you can have room for an autopilot, instrument, stereo controller, or VHF mic.

A SystemPod is best mounted on a Single Bend AngleGuards.

SystemPods for Power are for mounting on a SK135 Stachion Kit can be used to mount a SystemPod on a flat surface, such as the flybridge. Stachion Kits can also be used with a SystemPod for overhead mounting applications.

Sizing:

Overall Size: 9.5"H x 20.75"W x 6"D

Usable Face: 7.375"H x 17.5"W x 5"D

Max Cutout: 7"H x 17"W

Instrument Cutout: 3.6"

All SystemPods include:

• Acrylic capped ABS plastic
• Chromed stainless steel tamper-proof fasteners
• Double seal for watertight integrity
• Models are available pre-cut for popular electronics
• Stainless steel mounting hardware and mounting gaskets

*See Literature tab for an image with dimensions

Specifications:

• Mounting Style: Pedestal
• Cut/Uncut: Cut
• Box Dimensions: 6"H x 10"W x 21"L WT: 5.6 lbs
• UPC: 659988108613
