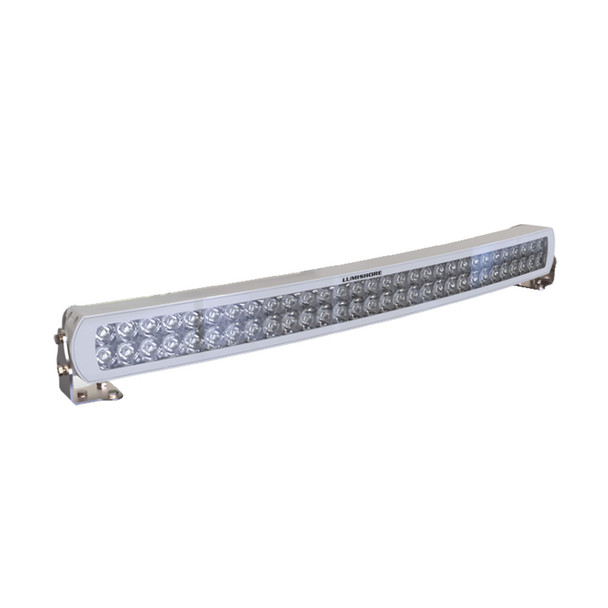

Lumishore 30" Curved Light Bar — White

A purpose-built above-deck LED bar stepping up to 23,760 fixture lumens for mid-size boats, with the same signature 9°–20° letterbox beam that sweeps light forward without glare back to the helm. This page keeps the lumen output, beam specs, current draw figures, and ecosystem compatibility high on the page so you can confirm the right light bar size before ordering.

Garmin authorized dealer

What's included

• Lumishore 30" Curved Light Bar — White
• Two stainless-steel adjustable mounting brackets
• Two bracket drill jigs
• Full hardware kit: M6 hex bolts, flat washers, spring washers, nylon insert nuts, flat spreader plates

Best fit

Best for mid-size center-consoles, express cruisers, and walk-arounds in the 30–40 ft range that need powerful forward white illumination on a T-top, arch, or helm roof.

Why choose this light bar

• 23,760 verified fixture lumens: approximately 60 × 10 W white HICOB LEDs produce 23,760 measured fixture lumens (53,460 total) — a significant step up from the 20" without the footprint of a 40" bar.
• 9°–20° letterbox beam: the 9° vertical / 20° horizontal letterbox pattern pushes a crisp forward light arc with minimal back-scatter to the helm.
• IP68 & marine-grade construction: powder-coated aluminium housing with Makrolon polycarbonate lens; tested for permanent marine exposure.
• 12 V and 24 V compatible: 10.5–31 V DC internal driver; draws 19.3 A at 12 V or 9.7 A at 24 V.
• Ecosystem-ready: standalone on/off switch or integrates into the ECLIPSE or EOS-LUX Command Center for MFD control.
• Authorized dealer support: buy from MyGreenOutdoors with Garmin- and Lumishore-focused product help and fast shipping on qualifying orders.

Key specifications

Compatibility & control

The 30" Curved Light Bar operates standalone from any customer-supplied on/off switch. For dimming and MFD control, it pairs with the Lumishore ECLIPSE Command Center (12 V) or EOS-LUX Command Center (10.5–31 V). EOS-LUX connects to supported Garmin, Simrad, B&G, and other chartplotters via the appropriate MFD Conversion Cable.

• Standalone switch control — 2-wire on/off
• ECLIPSE Command Center — 12 V dimming and zone control
• EOS-LUX Command Center — full MFD integration; requires MFD Conversion Cable (010-14453-00 Garmin / 010-14454-00 Simrad/B&G)

Compare related options

Use these if you need a different output level for your vessel size:

• Lumishore 20" Curved Light Bar (010-04462-00) — 15,000 fixture lumens for smaller center-consoles under 30 ft
• Lumishore 40" Curved Light Bar (010-04464-00) — 31,280 fixture lumens for larger offshore boats
• Lumishore 50" Curved Light Bar (010-04466-00) — 39,600 fixture lumens, maximum output for large sport-fishing vessels

Frequently asked questions

How does the 30" compare to the 20" light bar?
The 30" bar produces 23,760 fixture lumens versus 15,000 for the 20" — approximately 58% more output — while adding about 250 mm of overall length. Both share identical beam angle, housing design, voltage range, and control options.

What current draw should I plan for at 12 V?
The 30" bar draws up to 19.3 A at 12 V. Plan for a dedicated, individually fused circuit. At 24 V the draw drops to 9.7 A.

Can I mix 20", 30", 40", and 50" bars on the same ECLIPSE or EOS-LUX system?
Yes. All four curved light bar sizes are compatible with the ECLIPSE and EOS-LUX Command Centers and can be zoned and controlled together from the same system or MFD.

Does the 30" bar integrate with Garmin chartplotters?
Yes, with the EOS-LUX Command Center and the Lumishore MFD Conversion Cable for Garmin (010-14453-00). Supported plotters include GPSMAP 7x2 Plus/9x2 Plus/12x2 Plus, 7x3/9x3/12x3/15x3/16x3, 84xx/86xx, 90xx/92xx, and others.

What mounting hardware is included?
The bar ships with two stainless-steel adjustable brackets, two drill jigs, and a full M6 hardware kit with spreader plates. No additional mounting hardware is required for a standard installation.

What's the warranty?
Lumishore covers the bar with a 3-year warranty. MyGreenOutdoors is a Garmin and Lumishore authorized dealer and can assist with warranty claims.
